Individual Machines
ARS-TBX-BSY-A-TBZ
Automatic float glass breakout system XYZ – 300 pieces/h
The LiSEC ARS-TBX-BSY-A-TBZ automatically breaks out trim cuts, remnants, XYZ-cuts and continuously, quickly and with consistently high breaking quality. The fully automatic BSY-A breakout station eliminates manual breakout operations and operator intervention, ensuring maximum productivity, repeatable quality and high process reliability. Thanks to electronically controlled breaker heads and intelligent breakout technology, even demanding glass types can be processed with optimum accuracy and minimal edge defects.

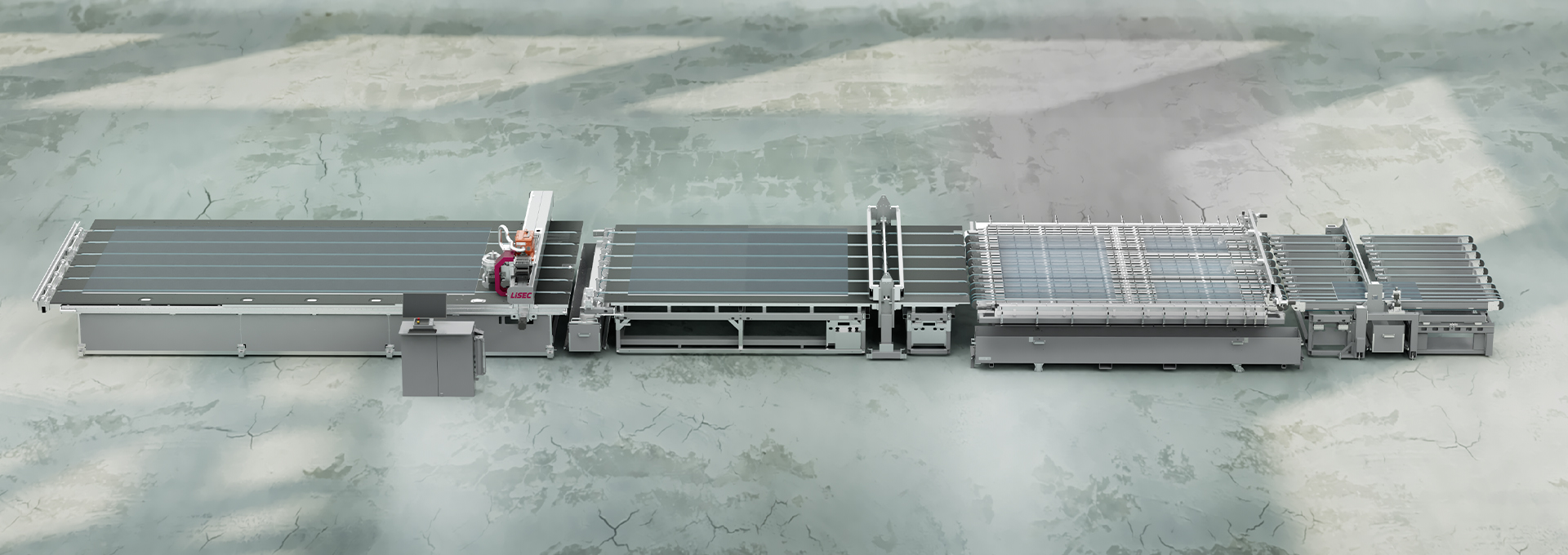

HOW IS THE LINE LAID OUT FOR THE AUTOMATIC BREAK-OUT OF X SUB-PLATES?
ARS: Automatic break-out of front and rear trim cuts
TBX: Automatic break-out of X-cuts
BSY-A: Fully automatic Y-breakout and side trim cuts
TBZ: Automatic break-out of X-cuts
Operator break out of shapes
Automatic unloading/sorting system (optional): Transfer of finished sheets to downstream processes
WHAT ADVANTAGES DOES THIS LINE DELIVER?
- Output of up to 300 finished sheets per hour
- Fully automatic breakout process without operator intervention
- Consistent breakout quality independent of operator skills
- Higher productivity through continuous glass flow
- Reduction of labor requirements and ergonomic advantages
- Improved edge quality and reduced grinding allowances
- Lower scrap rates and higher process reliability
- No contact with coated glass surfaces during breakout
HOW DOES FLOAT GLASS PROCESSING TAKE PLACE?
After breakout of front and rear trim cuts are automatically done, followed by the breakout of X-cuts and subplate enters in the BSY-A breakout station. The patented arrangement of the Y-breakout bars enables a compact machine design while ensuring reliable breakout of even small formats and complex production patterns. The trim cuts on top and bottom side of the subplate is done on the same station without additional space.
Finished sheets are transferred directly to downstream to the unloading section or a sorting, buffering systems. Necessary Z-breakouts enter the TBZ station, and the breakout process is done fast and precise.
The fully automatic process minimizes manual handling and maximizes throughput.
HOW DOES THE BSY-A IMPROVE AUTOMATION?
The BSY-A replaces manual XY and trim breakout operations completely. Finished glass sheets are automatically separated from the stock sheet and transferred to the next production step without interruption.
This significantly increases automation levels, ensures reproducible quality and allows operators to focus on higher-value tasks. Continuous processing reduces cycle times and supports maximum line productivity.
WHO IS THIS GLASS CUTTING SYSTEM SUITABLE FOR?
The ARS-TBX-BSY-A is the ideal solution for medium-sized and large-scale glass processors seeking maximum automation, high throughput and consistent breakout quality. It is particularly suited for companies facing labour shortages, growing production volumes and increasing requirements regarding quality and efficiency.
Its modular design allows future expansions and seamless integration into highly automated float glass processing lines.
- No contact with the coated glass surface
- Automatic break-out of front and rear trim cuts
- Automatic break-out of XY sub-plates
- Space-saving compact design (straight (0°) or corner construction (90°) possible)
- Continuous breakout process without operator intervention - reduced labour requirements
- Industry 4.0 connectivity and production data integration
- Electronic breaker heads with automatic breakout force adjustment depending on glass thickness
- Processing of glass thicknesses up to 19 mm
- Integration with automatic unloading and sorting systems
- Automatic cullet disposal solutions
The Highlights

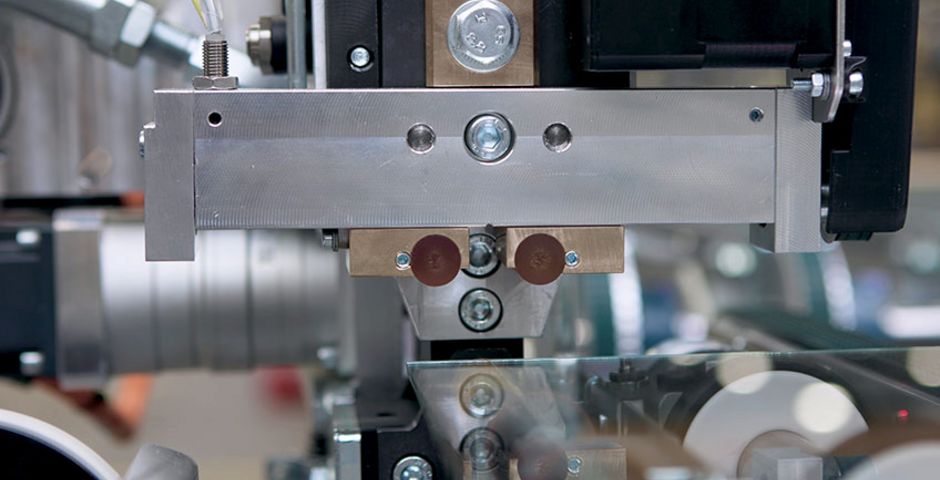

Fully Automatic Breakout
The BSY-A automatically breaks out finished glass sheets without operator intervention. This ensures constant quality, minimizes handling and maximizes productivity throughout the entire shift.

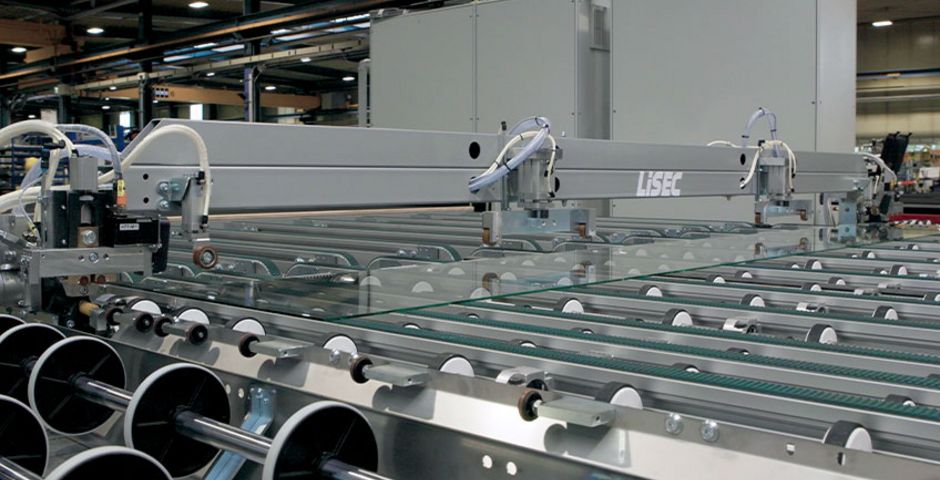

Continuous Production Flow
Finished sheets are separated and transferred automatically in a continuous process. Reduced cycle times and smooth material flow enable significantly higher throughput and efficiency.
Consistent Quality Every Sheet
Patented breakout technology delivers precise and repeatable breakout results independent of operator skills. Less scrap, better edges and reliable downstream processing are the result.
