Individual Machines
RHV-B, RHV-A IG
Automatic vertical loading and unloading of glass sheets by robot
The vacuum suction gripper for vertical robotic loading and unloading of glass sheets (LiSEC RHV-B) and finished insulating glass units (LiSEC RHV-A IG) automates manual glass handling. The system provides both fully automatic loading of an insulating glass line with individual glass sheets and automatic unloading of finished insulating glass units. This ensures a stable, continuous production process.
High reliability and repeatability ensure consistent product quality. The integrated glass support and extendable suction grippers of the RHV-A IG provide particularly gentle handling of insulating glass units with thermoplastic spacers.
How is the loading and unloading solution for flat glass designed?
The system consists of an industrial robot and a vacuum suction gripper. Combined with an appropriate LiSEC logistics solution, the robot handling systems ensure safe, uninterrupted loading and unloading of glass racks and automatic connection to production lines. The robot manufacturer can be selected as an option (ABB, KUKA, FANUC).
How does the system work?
Robot handling works as follows:
- Transmission of the glass sheet data from the upstream machine to the robot
- Using these data, the robot calculates the travel path and required speed
- Activation of the required vacuum suction cups on the gripper
- The robot picks up and lifts the glass sheet
Who are the RHV-B and RHV-A IG suitable for?
Robot handling is suitable for companies that want to automate vertical handling between the glass rack and the production line.
What advantages does the system offer?
The LiSEC RHV-B and RHV-A IG robot handling systems automate vertical glass handling, ensuring a continuous and stable production process. Their high repeatability enables precise handling of glass sheets and insulating glass units, ensuring consistent product quality. At the same time, automation increases occupational safety by reducing manual handling steps. The systems can be adapted flexibly to different glass racks and transport containers and require little space thanks to their compact design. They also help to reduce personnel requirements. For handling insulating glass units, the RHV-A IG additionally features an integrated glass support that enables particularly gentle handling, especially with thermoplastic spacers.
Technical Data
Technical Data
| RHV-B, RHV-A IG | Technical Data |
|---|---|
| Maximum glass load: | RHV-A50 = 50 kg |
| Maximum glass load: | RHV-A100 = 100 kg |
| Maximum glass load: | RHV-A200 = 200 kg |
| Maximum glass load: | RHV-A300 = 300 kg |
| Maximum glass load: | RHV-A400 = 400 kg |
| Maximum glass load: | RHV-A480 = 480 kg |
| Maximum glass size: | 4000x3300 mm (depends on type of RHV-A) |
| Minimum glass size: | 350x180 mm |
| Processable thicknesses: | 3 – 60 mm (100 mm) |
- Guarantee of continuous production
- Increased safety for employees
- Consistent product quality
- High flexibility in adapting to the glass racks / transport containers
- Reduction of personnel costs
- Small footprint
- RHV-A IG: Integrated glass support for handling insulating glass units
- Mobile robot version on a linear axis: seventh axis for an additional direction of movement
The Highlights
High flexibility for glass racks

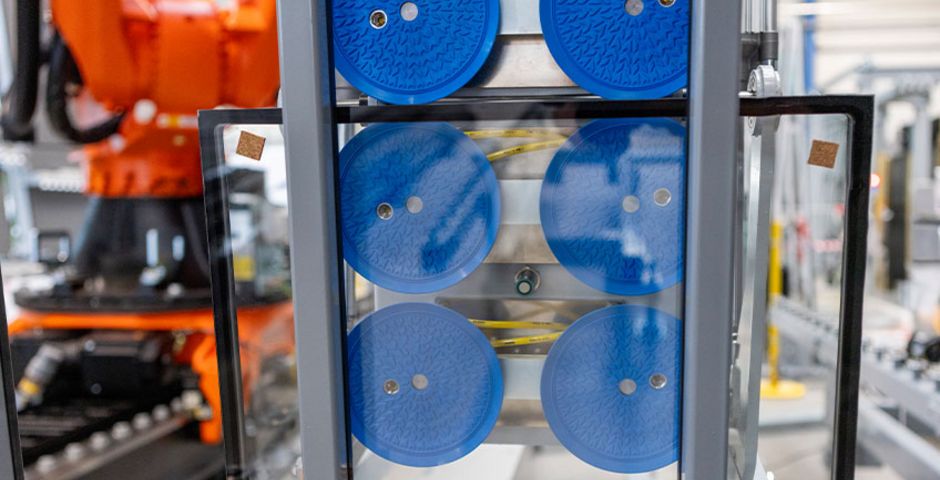

Robot handling allows the system to be adapted flexibly to different glass racks and integrated easily into existing production lines. The linear arrangement of the vacuum suction cups also allows the units to be rotated further if required.
Consistent product quality through repeatable gripping
Repeatable gripping guarantees consistent product quality. Precise motion sequences prevent unintended slipping between the suction cups and the glass sheet when the sheet is set down.
RHV-A IG: Gentle handling of insulating glass units
The integrated glass support and extendable suction grippers enable particularly gentle handling of insulating glass units with thermoplastic spacers.
