LBH-60M

Semi-automatic butyl extruder for rigid spacer frames

With the LBH-60M semi-automatic butyl extruder, butyl can be applied at a controlled rate on both sides with fixed spacer frames and therefore with high precision. This butyl cord, which is placed precisely in the centre of the spacer side surface, serves as the primary waterproofing seal after pressing with the glass sheets to form an insulating glass unit. Frame widths of 4 - 60 mm can be processed, thanks to the infinitely variable nozzle adjustment. Rectangles, frames with built-in Georgian bars and shapes - even the butylation of arches during processing is straightforward with the LBH-60M.


How is the semi-automatic butyl extruder configured?

The butyl is heated in a heated butyl pressure system with a capacity of 14 litres and transported to the butylation nozzles on the filling head. The butyl transport system is identical in design and has a volumetric control system, so that the butyl application on the spacer frame is exactly the same on both sides of the frame. A belt transport unit and pressure roller system ensure the constant feed of the frame. A modern control panel with clear visualisation guarantees convenient operation of the system.


How does spacer frame butylation work?

The spacer frame is manually placed on the conveyor belt and guided through the laterally arranged butyl nozzles in the filling head. During this process, the set amount of butyl is precisely applied to both sides of the spacer profile.


Who is the LBH-60M suitable for?

The LBH-60M is the ideal complement to the semi-automatic desiccant filling systems for all small and medium-sized operations. However, large insulating glass manufacturers with fully automatic butyl extruders can additionally use the LBH-60M for the production of shapes.


What advantages does the system offer?

The precise frame guidance guarantees that the spacer frame is accurately centred and guided through the butyl nozzles by means of parallel pressing hold-down rollers, thereby ensuring uniform butyl application on both sides. The intuitive operating concept offers the option of creating the most common spacer profiles as favourites. Following selection on the control terminal, the nozzles move to the correct profile width and all parameters stored in the "recipe" are adopted. The 14 litre butyl cylinder means fewer refills are required. A swing-out butyl cylinder and the butyl fork provided allow a quick and easy refilling process. Butyl storage tank heating can also be automated via an integrated weekly timer, for maximum efficiency.

Read more

Highlights & Benefits


Optional


  • Precise application quantity due to electro-pneumatic pressure control
  • Automatic width adjustment from 4 - 60 mm by measurement or recipe selection
  • Ergonomic, due to infinitely adjustable height
  • Processing of spacers with Georgian bars
  • Straightforward butylation of arches and shapes
  • Inlet and outlet side (detachable) support extensions for safe frame guidance with very large frames
  • Additional lateral guide rollers for frames with Georgian bars or very narrow frame profiles
  • Mechanical adjustment aid for nozzle height adjustment
  • Visual warning signal displayed to indicate that the butyl storage tank needs to be refilled

The Highlights

Even coating of rectangles and shapes

When processing rectangles and shapes, a sensor-controlled hold-down roller provides the necessary stabilisation of the frame and therefore ensures optimum coating quality. The hold-down rollers can also be switched off as required, to the facilitate processing of shapes. Furthermore, there is a special pressure roller for the butylation of arches.

Progressively adjustable working height

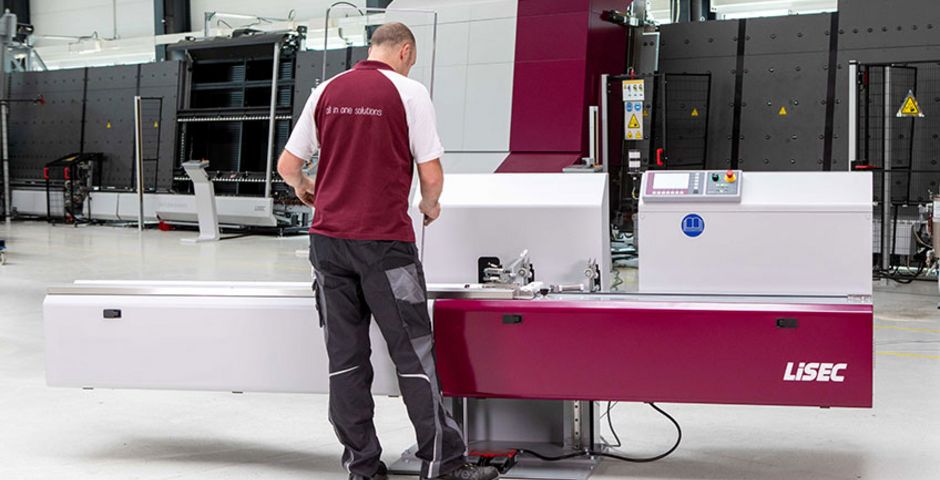

Thanks to the vertical hoist, the working height can be easily adjusted to fit the operator and to suit the frame size. This makes the LBH-60M particularly ergonomic.

Electro-pneumatic pressure control

The desired application quantity is precisely metered and adapted to the current belt speed by the electro-pneumatic pressure control. This means that even very large frames or shapes can be optimally processed by reducing the belt speed.
