ARS-TBX
Automatic float glass X breakout system – 120 pieces/h
The LiSEC float glass breakout system automatically breaks the trim cut at the front, the remnants at the trailing edge, as well as the X sub-plates continuously, quickly and with consistently high breaking edge quality. Thanks to the optionally available electric design of the breaker heads, individual process parameters are possible for each glass type and thickness to deliver even better breakage results for optimum precision and grind additions! Any Y and Z breakages, as well as W breakages and shapes are broken out on a downstream manual breakout table.

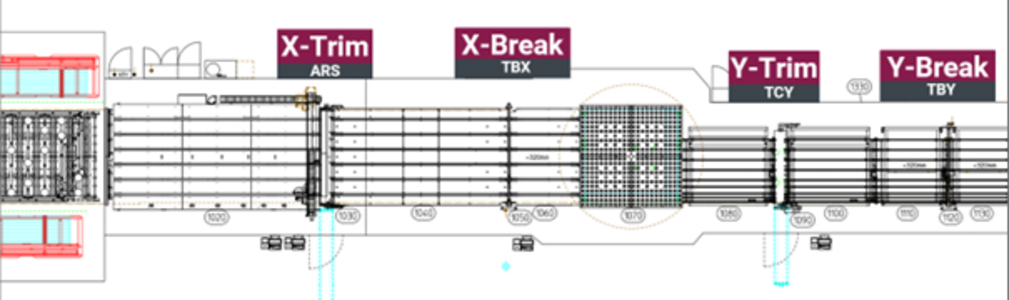

HOW IS THE LINE LAID OUT FOR THE AUTOMATIC BREAK-OUT OF X SUB-PLATES?
ARS: X-trim cut front and rear
TBX: Break-out of X-cuts
System operator: Breaks out the Y and Z cuts, as well as W cuts, shapes, edge and residual fractures
HOW DOES FLOAT GLASS PROCESSING TAKE PLACE?
LiSEC breakout systems for the automatic break-out of edge, remnant and sub-plate cuts, have a patented three-point breakout system. The breaker heads of this three-point technology only touch the glass on the uncoated underside and in the edge area where the Low-E or solar control coating has previously been removed (edge deletion process). This ensures that there is no contact with the surface, which minimises the risk of scratches during the manufacturing process and guarantees top quality.
HOW ARE SHAPES BROKEN OUT?
Shapes are broken out at the end of the system, after automatic edge, remnants and X-Y breakage of the sub-plate on a manual breakout table with the aid of integrated breaker bars.
WHAT ADVANTAGES DOES THIS LINE DELIVER?
- Increase in the degree of automation and output of up to 120 sheets per hour
- Higher edge quality thanks to electronically controlled breaker heads
- Prevention of sheet breakage and grind addition savings
- No contact with the coated glass surface
WHO IS THIS CUTTING SYSTEM SUITABLE FOR?
This line is the optimum solution for all operations, from small and medium-sized glass processors to large-scale companies that want to produce perfect glass edges more economically, quicker and easier. The compact design of this line with automatic X breakage is suitable for almost any space and can be expanded as required.
IS IT ALSO POSSIBLE TO RETROFIT THE ELECTRIC BREAKER HEADS?
Yes, it is possible with an industrial PC (IPC) 2018 and onwards.
- No contact with the coated glass surface
- Automatic break-out of front and rear trim cuts
- Automatic break-out of X sub-plates
- Space-saving compact design
- Design for glass thicknesses of up to 19 mm
- Automatic breakout force adjustment depending on glass thickness using electronic breaker heads
- Design with automatic disposal of broken glass pieces in compact indoor or outdoor containers for broken glass
HOW IS THE LINE LAID OUT FOR THE AUTOMATIC BREAK-OUT OF X SUB-PLATES?
ARS: X-trim cut front and rear
TBX: Break-out of X-cuts
System operator: Breaks out the Y and Z cuts, as well as W cuts, shapes, edge and residual fractures
