RHH-A

Fully automatic tempering bed loading and unloading

The very compact tempering bed loading and unloading by robot, with its lightweight modular clamp, and the GPS.autofab responsible for the logic, can adapt to almost any products, ensuring a stable and continuous process.


How is the robot bed loading configured?

The system consists of a robot and a clamp, in conjunction with a comprehensive software package that calculates the required suction cups and the best position of the sheet in the tempering bed.


How does the robot bed loading work?

The sheets are pre-sorted in the sorting/buffer station (ASM) and then transported to the take-off position via a belt section. GPS.autofab calculates the required suction cups and the storage position. The robot lowers the required suction cups on the clamp and activates the vacuum. This procedure enables dense occupancy, handling of sheets with cut-outs, as well as a reduction of suction cup marks. The robot picks up the sheet with low-pressure suction cups and places it in the calculated position directly at the tempering oven inlet.


Who is robot bed loading suitable for?

Automatic tempering bed handling is ideal for existing customers with sorting systems, and also for series production. Skilled employees can be deployed more effectively, because only one worker is required at the oven.


What advantages does the machine offer?

The continuous feeding of the tempering oven facilitates optimum utilisation. It also ensures production of consistent quality around the clock, because sheet occupancy always takes place according to the same algorithm.


What functions are included as standard?
  • Robot with traversing axis
  • Aluminium suction grippers
  • Individually controllable suction cups on lifting units
  • Pick & Place as well as a Drag & Drop mode mean it is even possible to handle heavy sheets with a small robot.

What functions can be optionally added?
  • Different sizes – depending on the oven and hall situation
  • Handling sheets with cut-outs
Read more

Technical Data

RHH-A
Max. size with "Pick and Place" and rotation (mm): 2800 x 1600 x 10
Max. load: 125 kg
Max. size for "Drag and Drop" (mm): 6000 x 3300 x 19
Min. size (mm): 500 x 250 x 4
Max. output: can vary depending on the quality of the glass sheet (cut-outs, etc.)

Highlights & Benefits


  • Maximum flexibility - Sheets can be freely positioned, depending on the requirements of the downstream tempering system
  • Reduced space requirements
  • Turing sheets directly on the robot
  • Consistent quality
  • Optimum tempering bed utilisation
  • Staff savings

The Highlights

Automatic calculation of the tempering bed

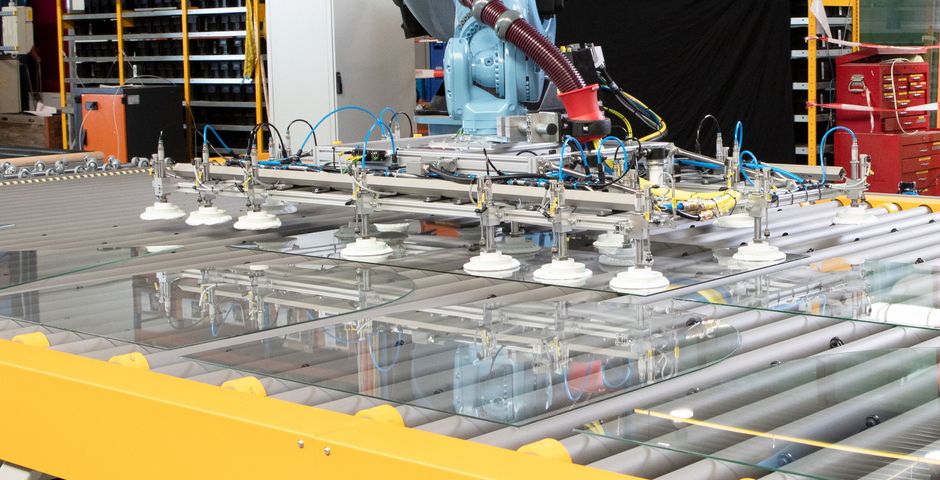

The tempering bed is calculated in GPS.autofab on the basis of the individually adjustable parameters and the sheets are then positioned on the tempering bed. This allows for consistent quality because occupancy is always based on the same parameters.

Reduction of suction cup marks

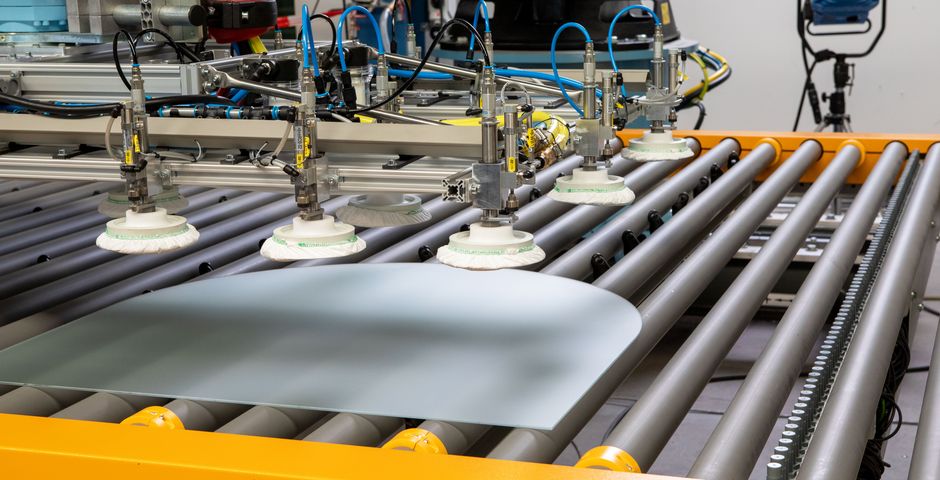

A controlled suction and discharge process keeps suction marks to an absolute minimum compared to a conventional suction unit.

Adjustment to sheet size and shape

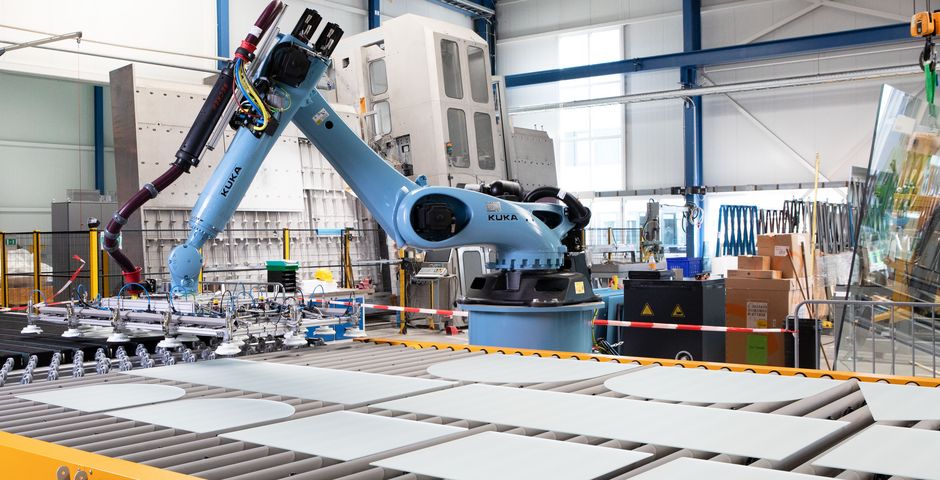

You can choose between Pick & Place and Drag & Drop mode, depending on the weight of the sheet. This means that a smaller robot can also handle large sheets. In addition, the robot only lowers the suction cups that are needed to move the sheet. The felt or an adjacent sheet remain untouched and the suction cup stays clear of dirt.
